Overview

The Total Lighting Render Element is a color image that includes the effects of both direct and indirect lighting on materials in the scene, including the diffuse component. It is a result of adding the VRayLighting and VRayGlobalIllumination render elements, or of multiplying the VRayRawTotalLighting and VRayDiffuseFilter render elements.

UI Path

||Render Setup window|| > Render Elements tab > Add button > VRayTotalLighting

Parameters

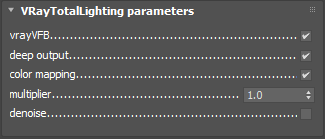

This render element is enabled through the Render Elements tab of the Render Setup window in 3ds Max and displays its parameters in a rollout at the bottom of the window:

vrayVFB – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

deep output – Specifies whether to include this render element in deep images.

color mapping – Applies the color mapping options specified in the Color mapping rollout of the V-Ray tab in the Render Setup window to this render element. This option is enabled by default.

multiplier – Sets the overall intensity of the render element, where 1.0 is the standard multiplier.

denoise – Specifies whether to denoise this render element.

Common Uses

The Total Lighting Render Element is useful for brightening or dimming all lighting during compositing. Below are a couple of examples of its use.

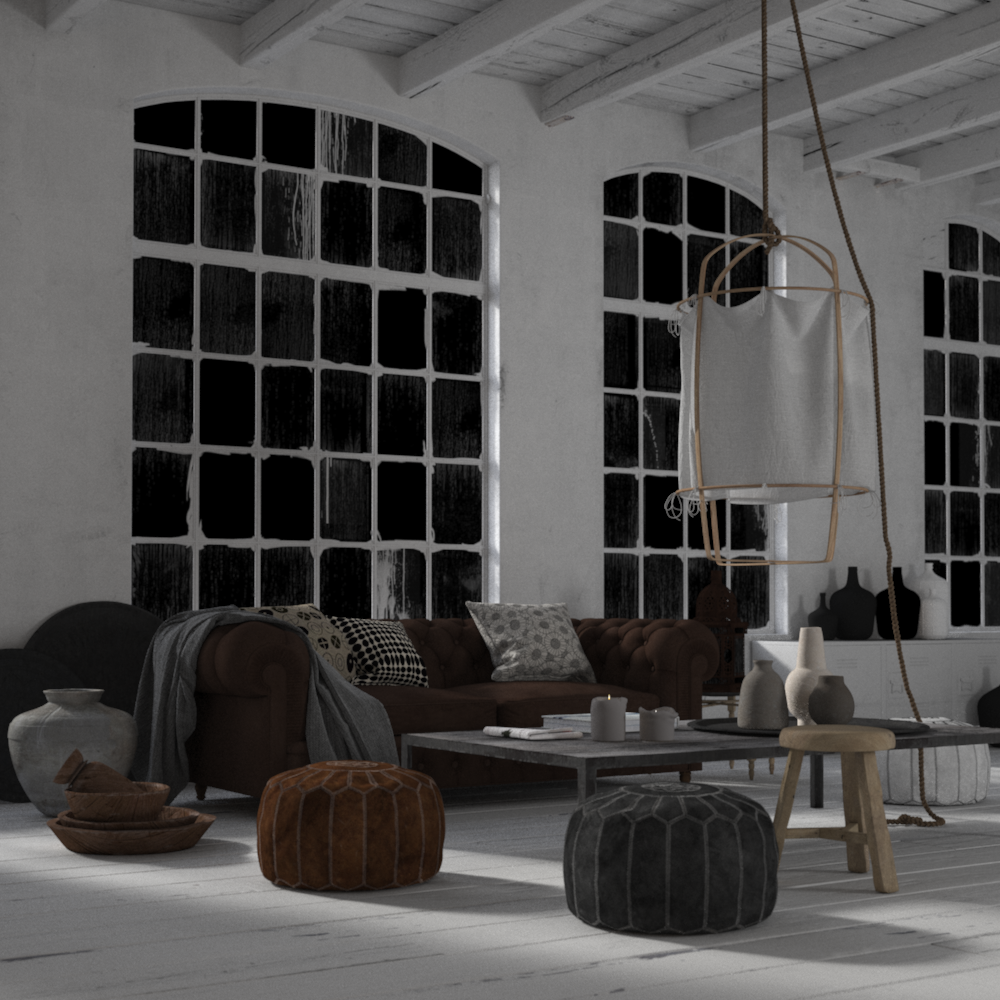

Total Lighting Render Element

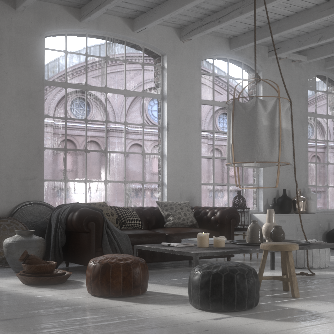

Original Beauty Composite

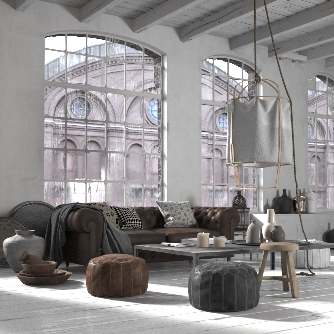

Brightened Lights

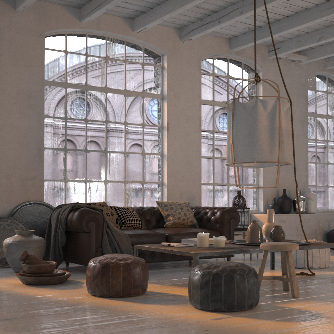

Tinted Lights

Compositing Formulas

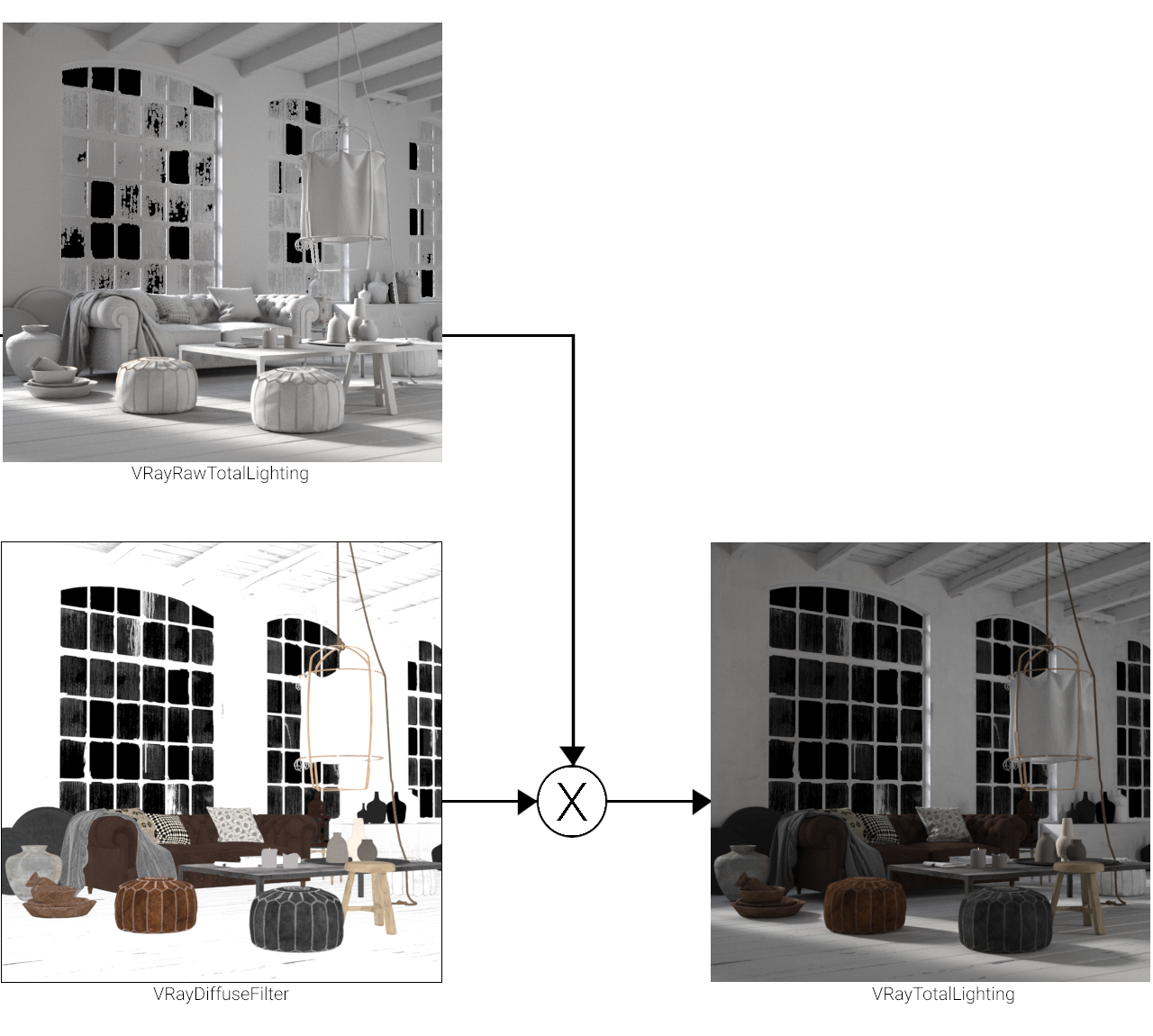

VRayRawTotalLighting x VRayDiffuseFilter = VRayTotalLighting

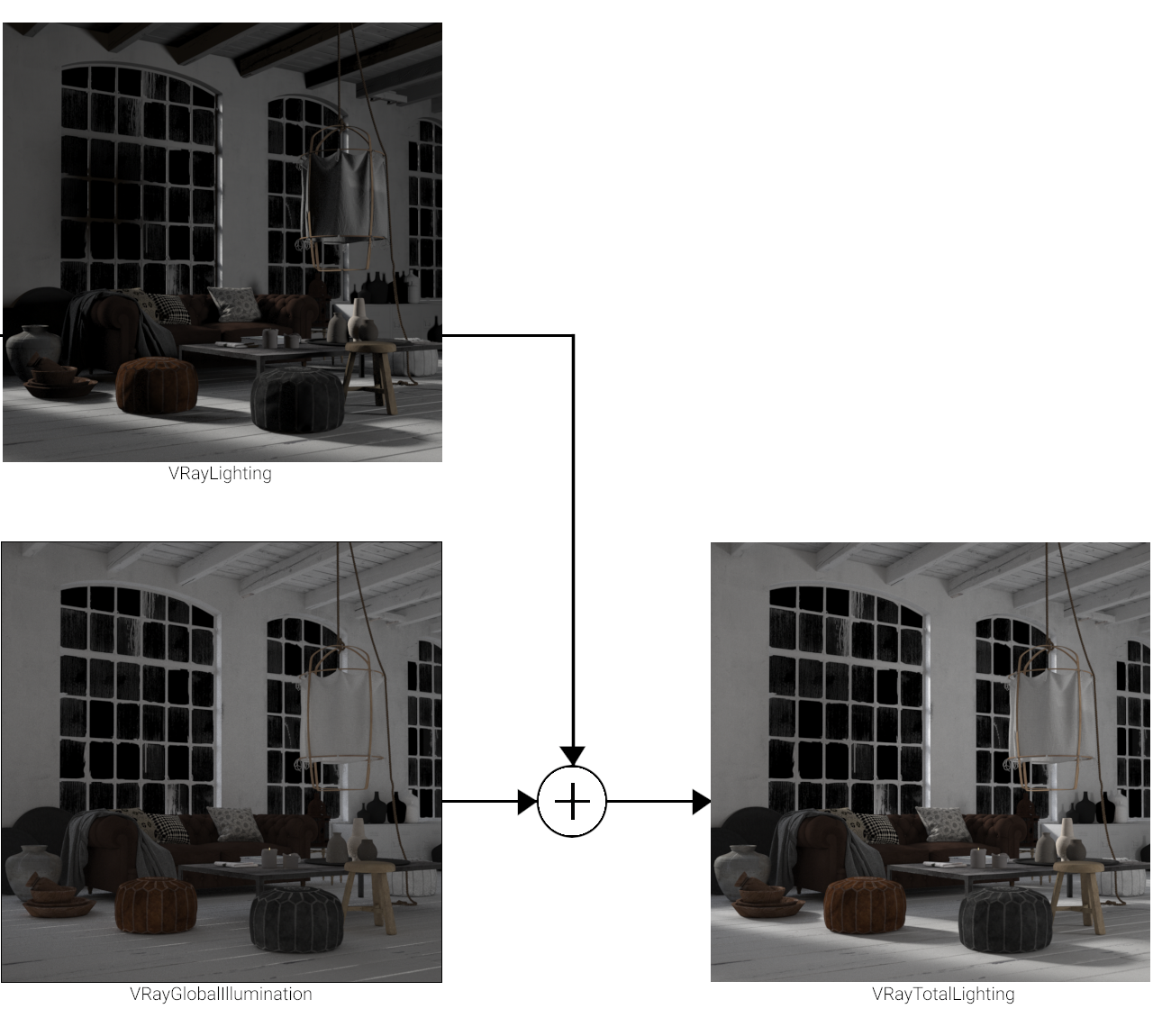

VRayLighting + VRayGlobalIllumination = VRayTotalLighting
