Overview

The Particle Map is a utility node that provides particle-based shading. It does not have any adjustable parameters. It is used in two types of setups:

• When used as a map in a material assigned to VRayProxy when alembic particles are present in the specified mesh file it returns the color from the .color channel of the particles.

• When used as a map in a material assigned to VRayMetaball surface, VRayParticleTex returns the color(s) defined by a Particle Flow operator. The VRayMetaball color source option defines which operator will that be (Display, VRayParticleColor or a scripted vector).

UI Path

||Material Editor window|| > Material/Map Browser > Maps > V-Ray > VRayParticleTex

Example

VRayParticleTex can be used in any map slot of the V-Ray Material applied to a V-Ray Metaball surface. Its blended color will relate to the color set in the original particles. For more information on Metaballs, please see the Metaballs and Iso-Surfaces page.

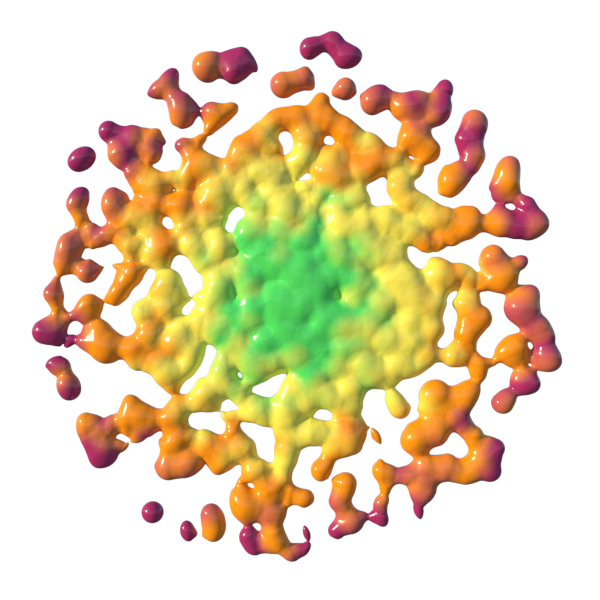

Example of VRayParticleTex used in Diffuse map slot of VRayMtl
and applied to Metaballs
