VRayOSLOutputSelector
This page provides information on the OSL Output Selector Map.
Overview
The VRayOSLOutputSelectorTex serves as a tool to select an output of a given VRayOSLTex. That way one VRayOSLTex can be used to supply multiple outputs at the same time.
UI Path
||Material Editor window|| > Material/Map Browser > Maps > V-Ray > VRayOSLOutputSelectorTex

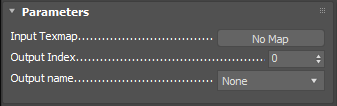

Parameters
Input Texmap -- The VRayOSLTex input texmap. (Only VRayOSLTex should be used as an input.)
Output Index – The index of the output that is selected(zero based). This parameter is linked to the Output Name parameter.

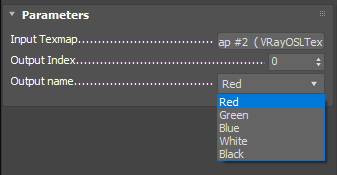

Output Name – The name of the output that is selected. Change the output by choosing a different one from the drop-down list. This parameter is linked to the Output Index Index parameter.

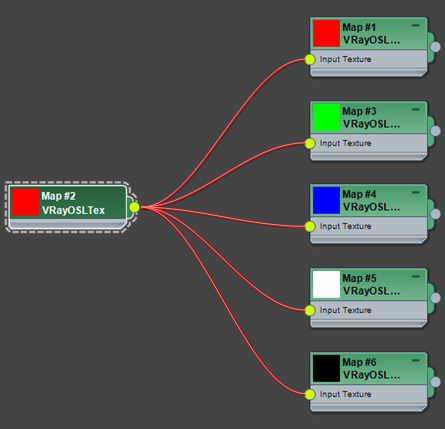

Example
shaderMultipleOutputsExample( output color Red = color (1.0, 0.0, 0.0), output color Green = color (0.0, 1.0, 0.0), output color Blue = color (0.0, 0.0, 1.0), output color White = color (1.0, 1.0, 1.0), output color Black = color (0.0, 0.0, 0.0)){ /*Empty. Does nothing.*/ }
