Overview

Caustics is an effect that is produced when light rays are reflected or refracted by the materials within a scene, which can produce light patterns on the same object or on other objects. The Caustics Render Element stores the effects that are generated with Caustics photon mapping, enabled from the Caustics rollout under the GI tab in the Render Setup window. This render element is useful for enhancing or toning down caustic effects in the composite.

UI Path

||Render Setup window|| > Render Elements tab > Add button > VRayCaustics

Parameters

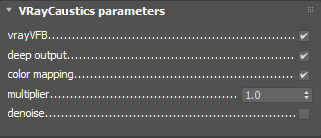

This render element is enabled through the Render Elements tab of the Render Setup window in 3ds Max and displays its parameters in a rollout at the bottom of the window:

vrayVFB – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

deep output – Specifies whether to include this render element in deep images.

color mapping – Applies the color mapping options specified in the Color mapping rollout of the V-Ray tab in the Render Setup window to this render element. This option is enabled by default.

multiplier – Sets the overall intensity of the render element, where 1.0 is the standard multiplier.

denoise – Specifies whether to denoise this render element.

Common Uses

The Caustics Render Element is useful for changing the appearance of caustic elements after rendering in a compositing or image editing application. Below is an example of its use.

Original Beauty composite

Caustics Render Element

Brightened caustics

Compositing Formula

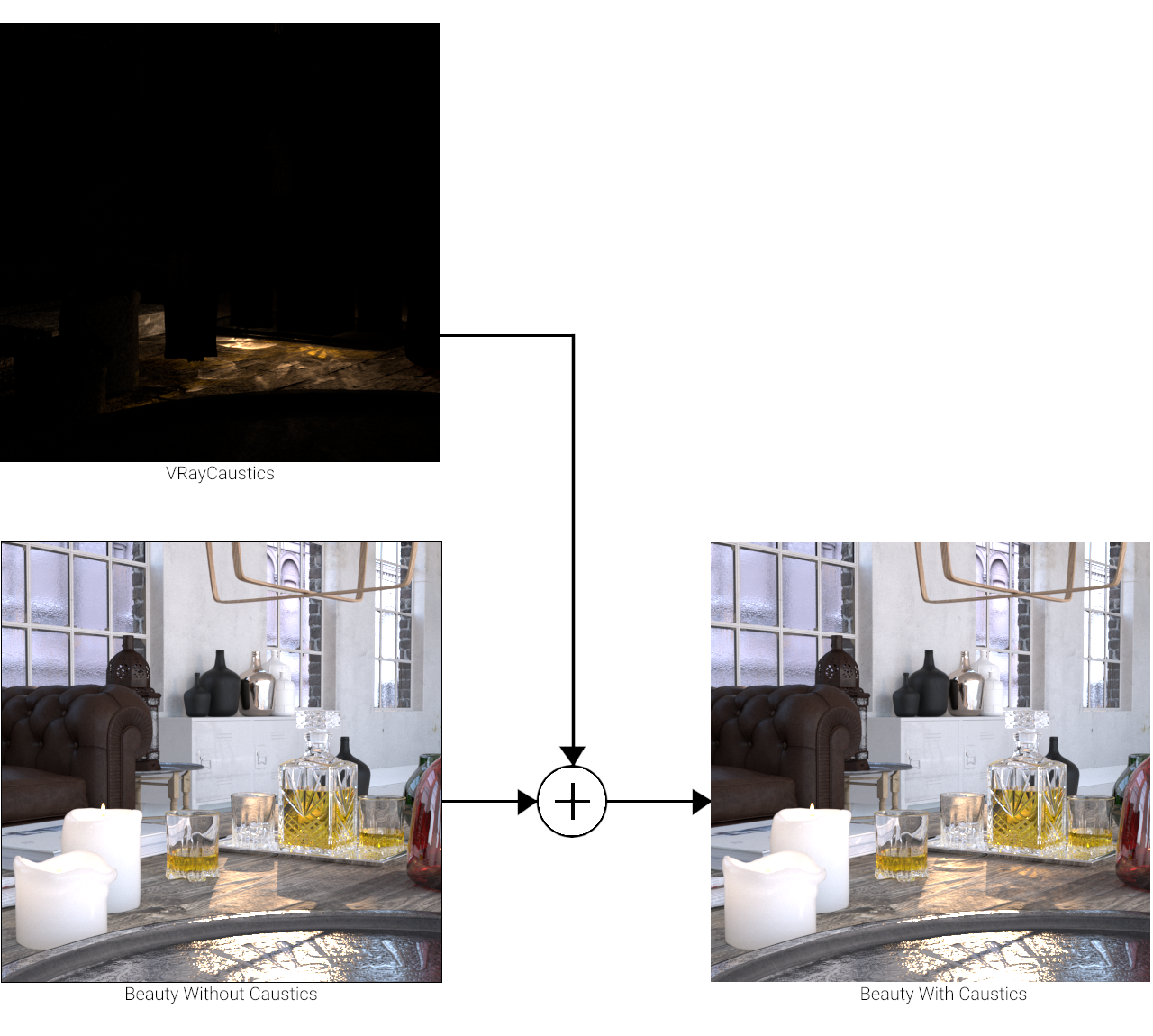

The VRayCasutics Render Element is added to the Beauty render to form the final image.

Notes

• The Reflective Caustics and Refractive Caustics options on the Global Illumination rollout in the Render Setup window cause a similar effect in the final rendering, but these caustics do not show up in the Caustics Render Element.
