Overview

The VRayPlane is a very simple plugin that implements a procedural infinite plane primitive for V-Ray. The source code of VRayPlane is also available as part of the V-Ray Geometry SDK.

The VRayPlane can be created from the the VRay category of the Create panel.

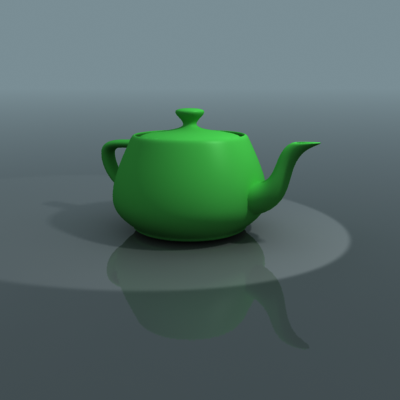

The 3ds Max teapot sitting atop a VRayPlane.

UI Paths

||Create menu|| > V-Ray > V-Ray Plane

||Create panel|| > Geometry > V-Ray category > VRayPlane button

||V-Ray Toolbar|| > V-Ray Plane button

Parameters

This plugin has a single parameter which allows the user to enable and disable the display of the VRayPlane in the view port.

Notes

• The position of the plane depends on its transformation in the 3ds Max scene.

• You can have more than one infinite plane in the scene.

• The plane is rendered with the material applied to the VRayPlane object.

• Shadow maps will not include information about the plane object. However, other objects will cast correct shadows on the plane, even with shadow maps.
